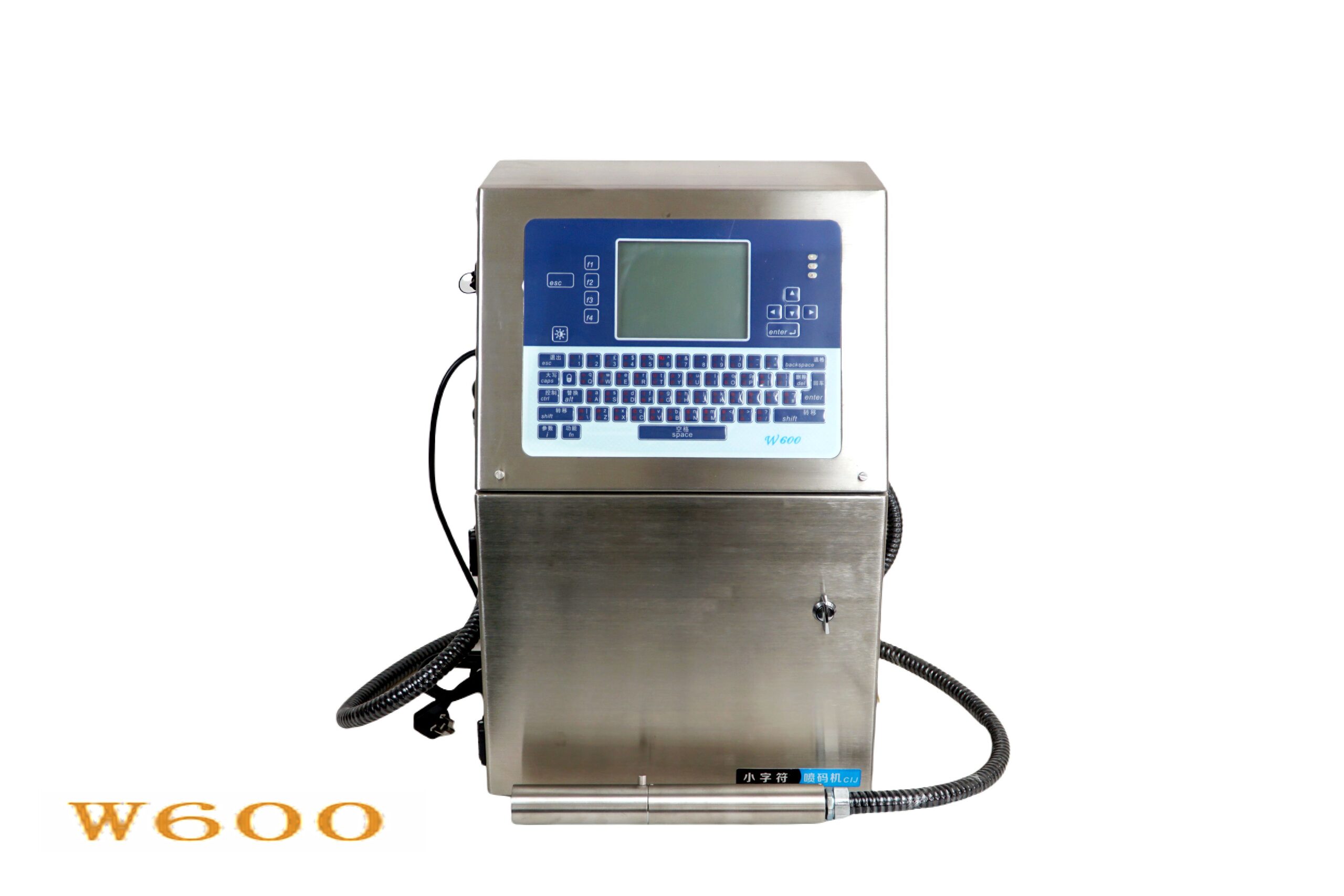

W600

描述

Product id
W600

Temperature/Humidity
5~45℃,relative humidity＜90%，no condensation

Electrical requirements
power supply：200-240VAC.50/60Hz，120W

weight
Unpacked net weight: 27kg Packaging weight: 42kg

Overall size
375mm×280mm×570mm

Larynx
Equipped with: standard 2.5m custom extension: 3m, 3.5m, 4m

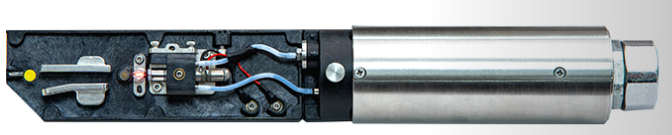

Nozzle
Diameter: 42mm Length: 264mm

Linear velocity
Single lane speed up to 240m/min

Character Height
Can be selected between 2-18mm based on font dot matrix

Printing Distance
The optimal distance for spray printing is 10mm, ranging from 5mm to 15mm

Display screen
320×240 LCD display

Array Configuration
English：5×5,5×7,7×9,9×11,12×16,18×24,24×32 。Chinese：8×7（Key Top）,9×9（Key Top）,11×11（Full font library）,16×16（Full font library）,24×24（Full font library）
